Ironside Armour Equipment

Pro Foldable Rack

Italy Flag Engineered in Italy

Pro Foldable Rack

€699,90 EUR
€699,90 EUR
Sale Preorder
Taxes included. Shipping calculated at checkout.
Available

Description

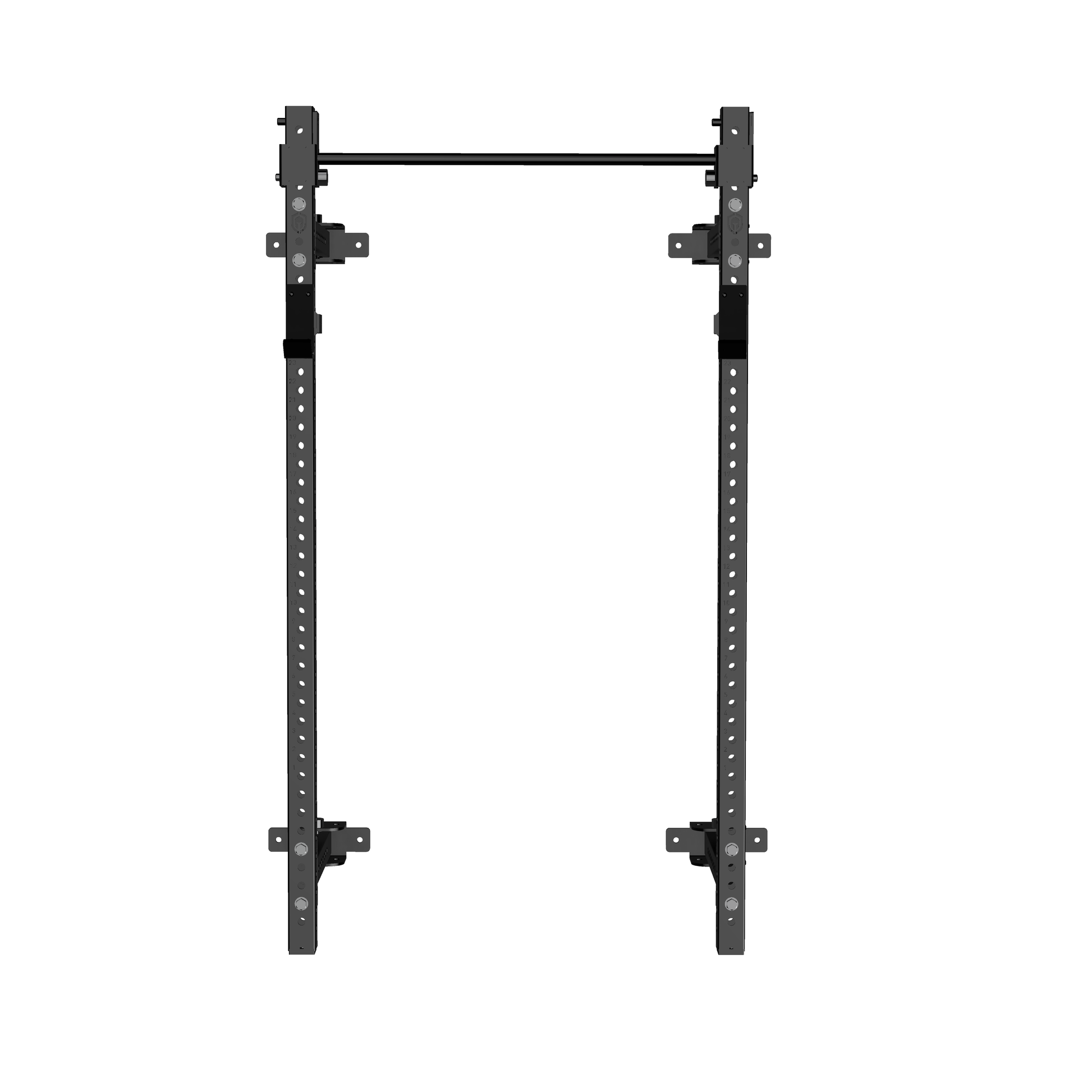

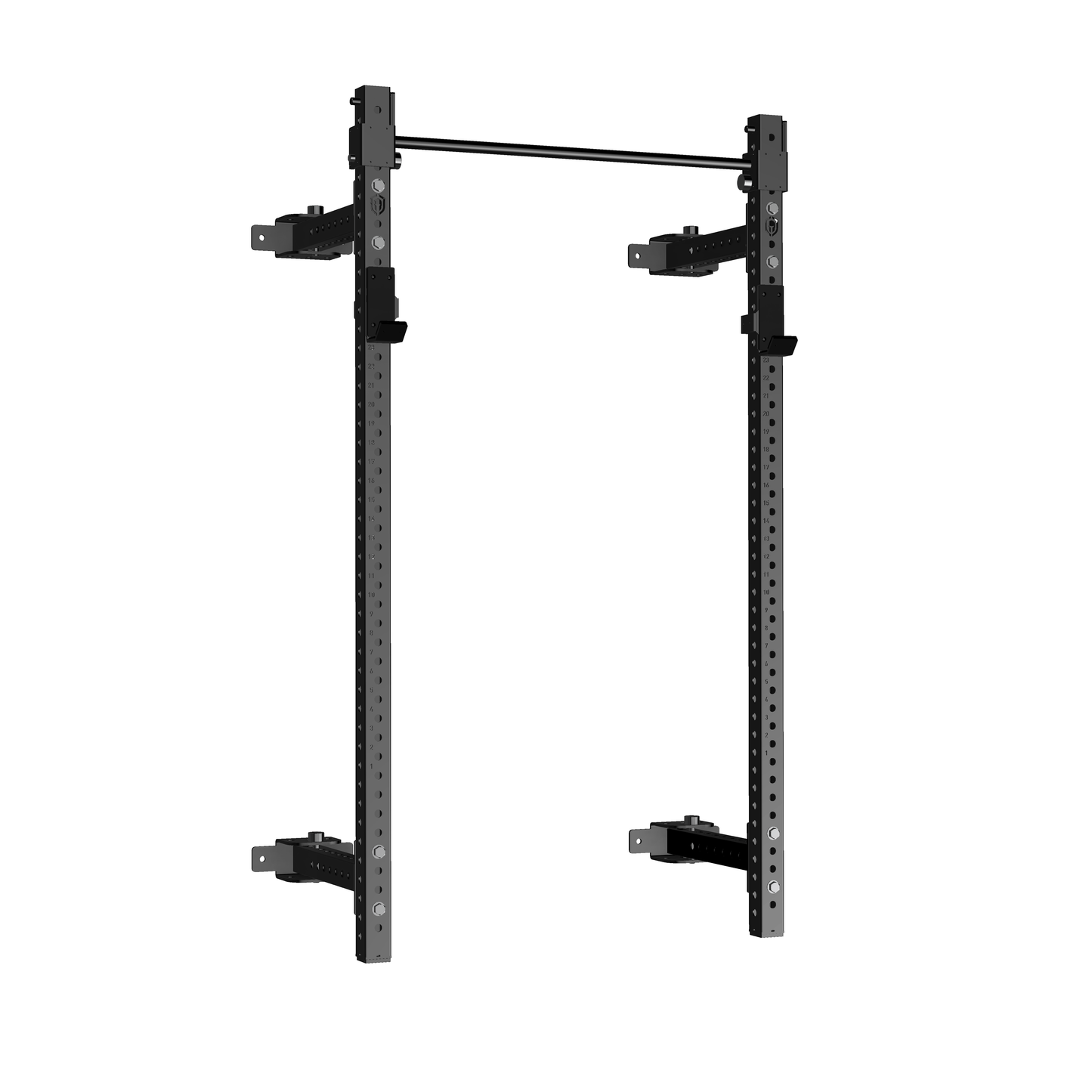

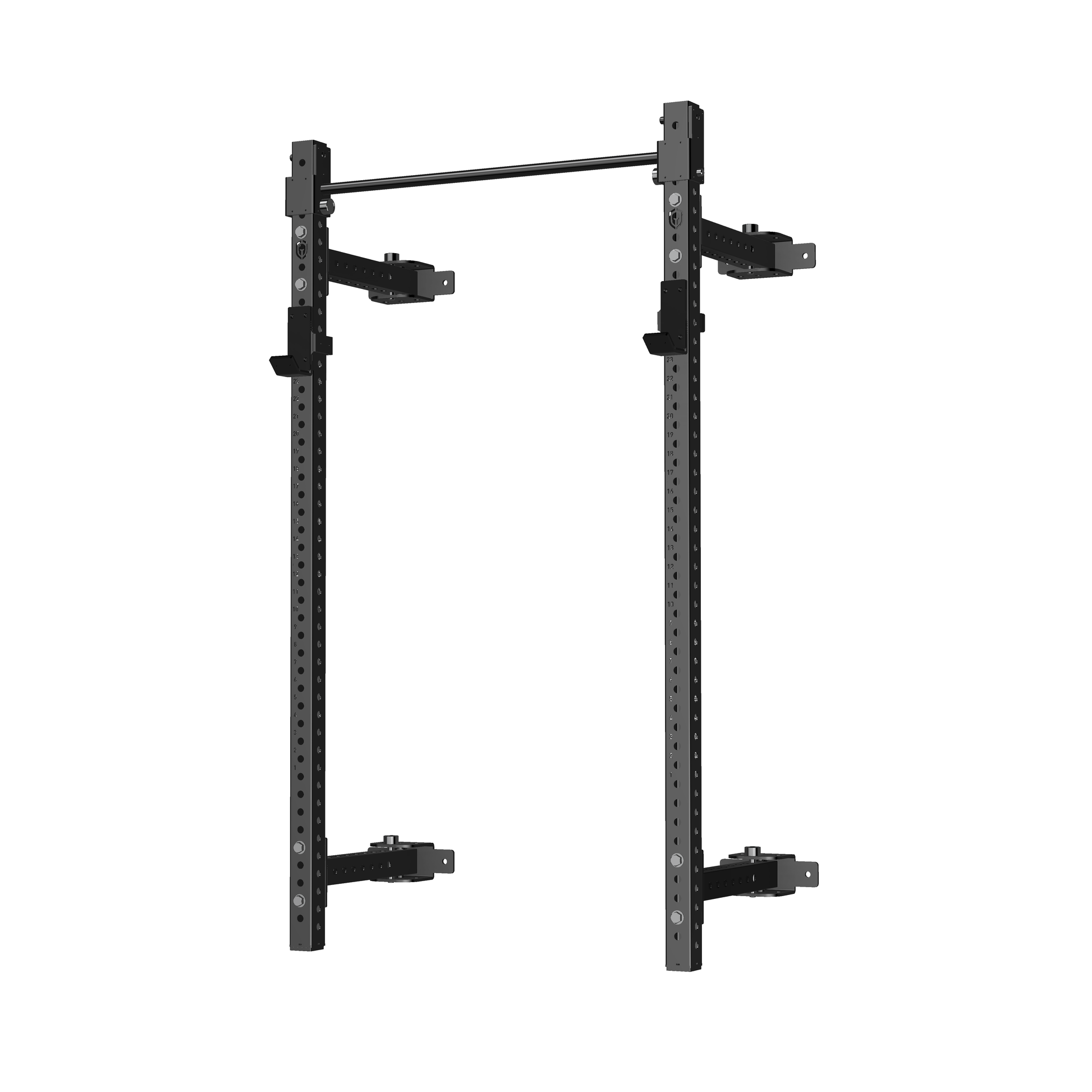

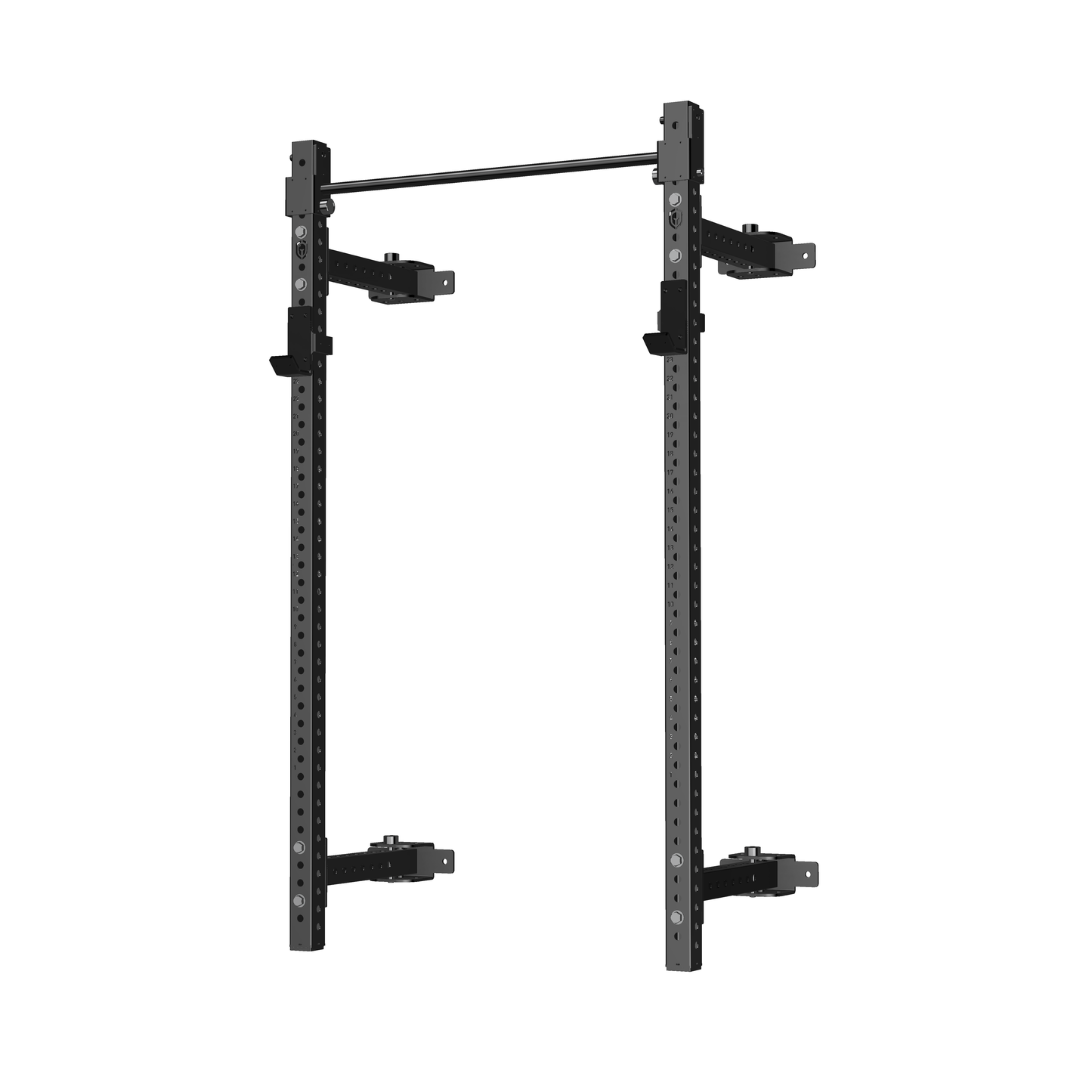

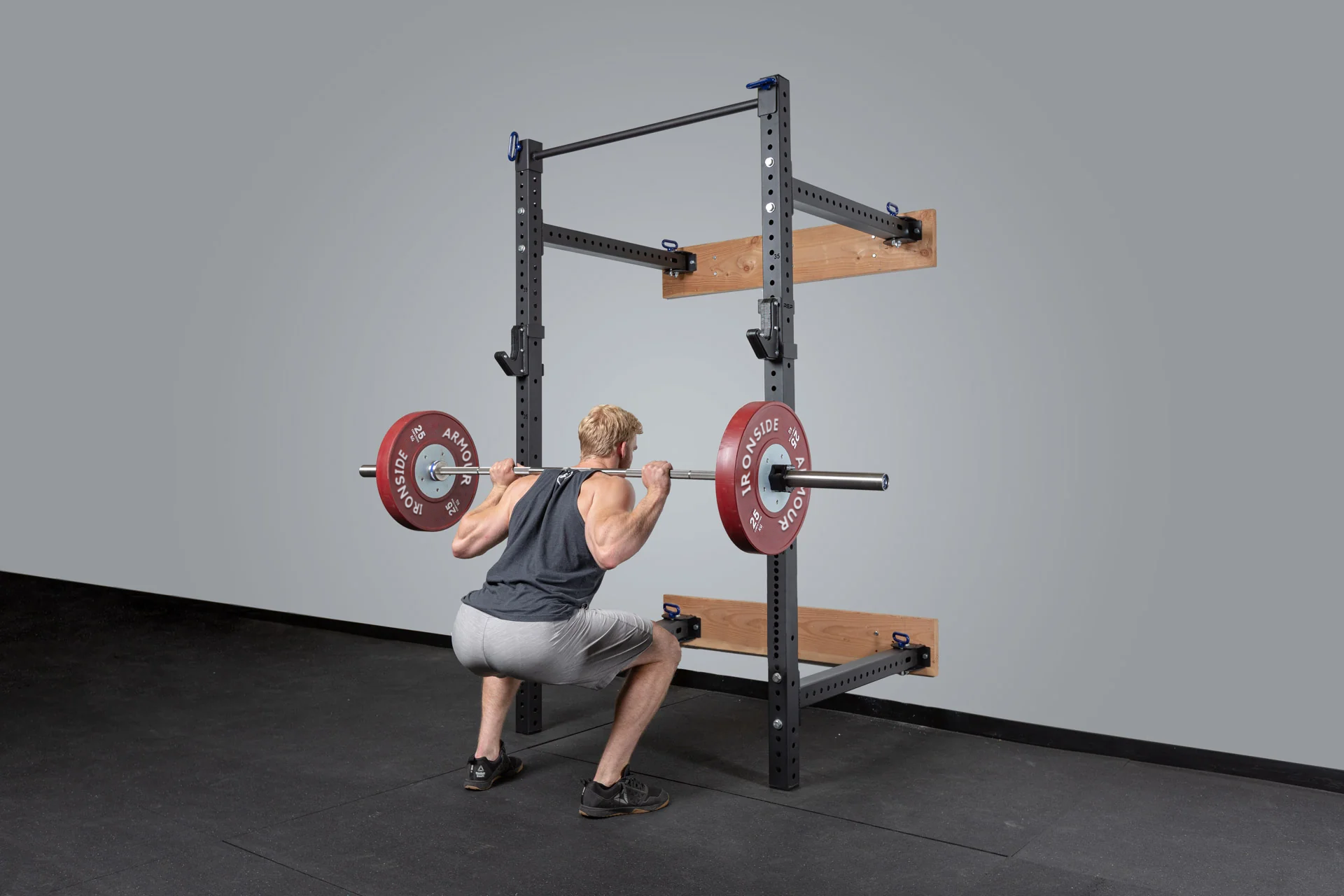

Discover our Pro Foldable Rack , the foldable rack designed for those who want a professional workout without compromise. Sturdy, stable and space-saving, it is ideal for Home Gyms, Garage Gyms and personal studios . Thanks to its intelligent design, you can install it anywhere without having to give up precious space, not even the parking space in the garage.

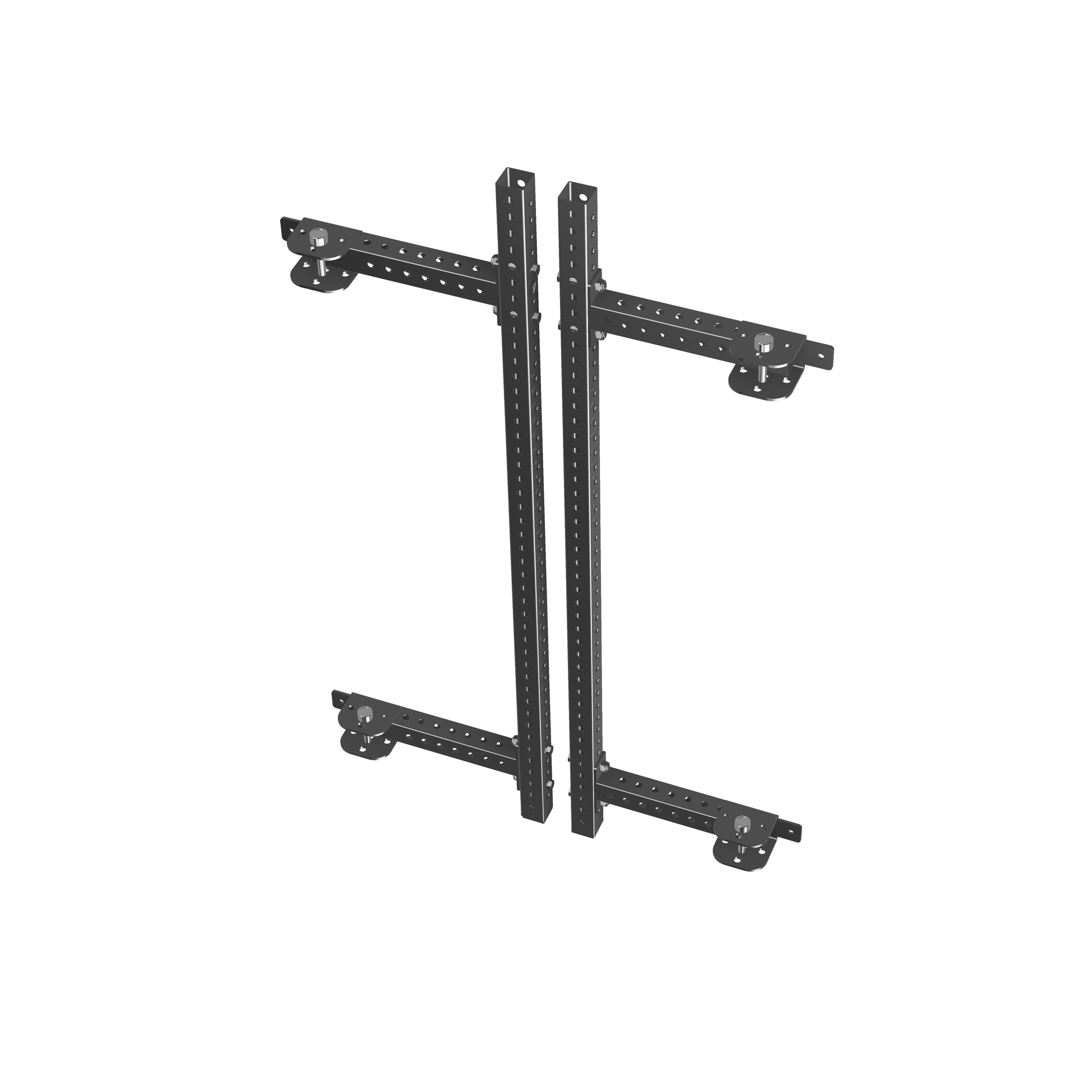

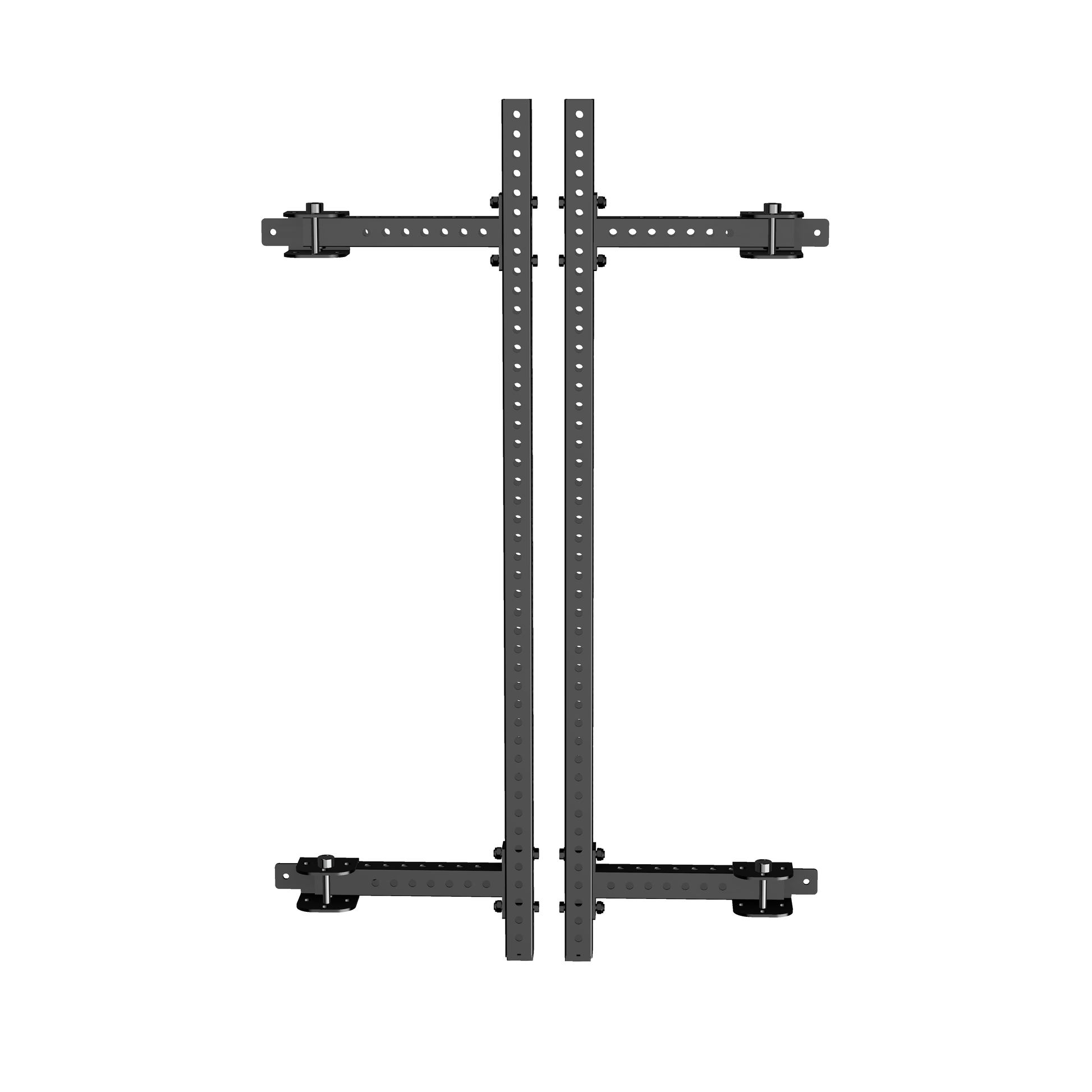

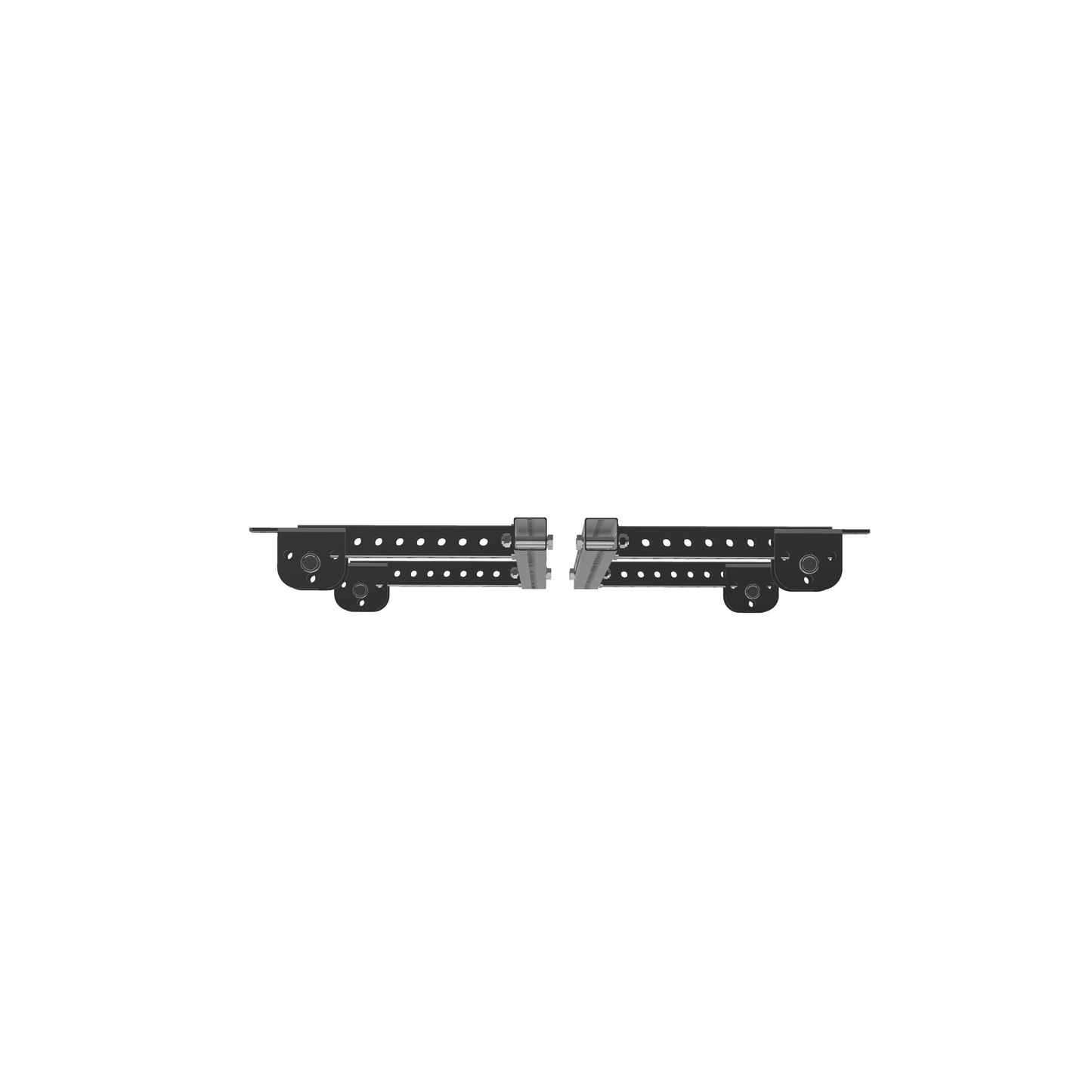

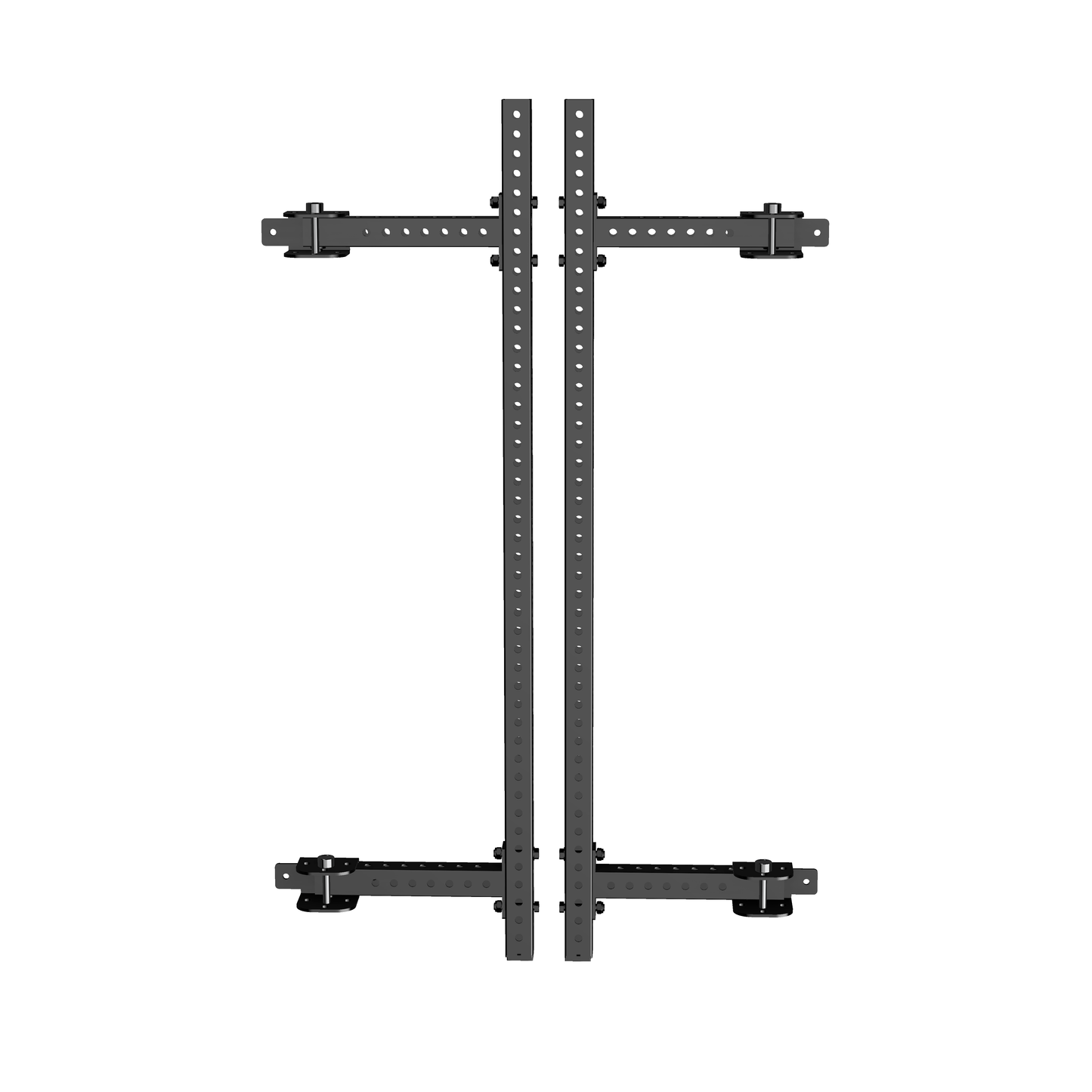

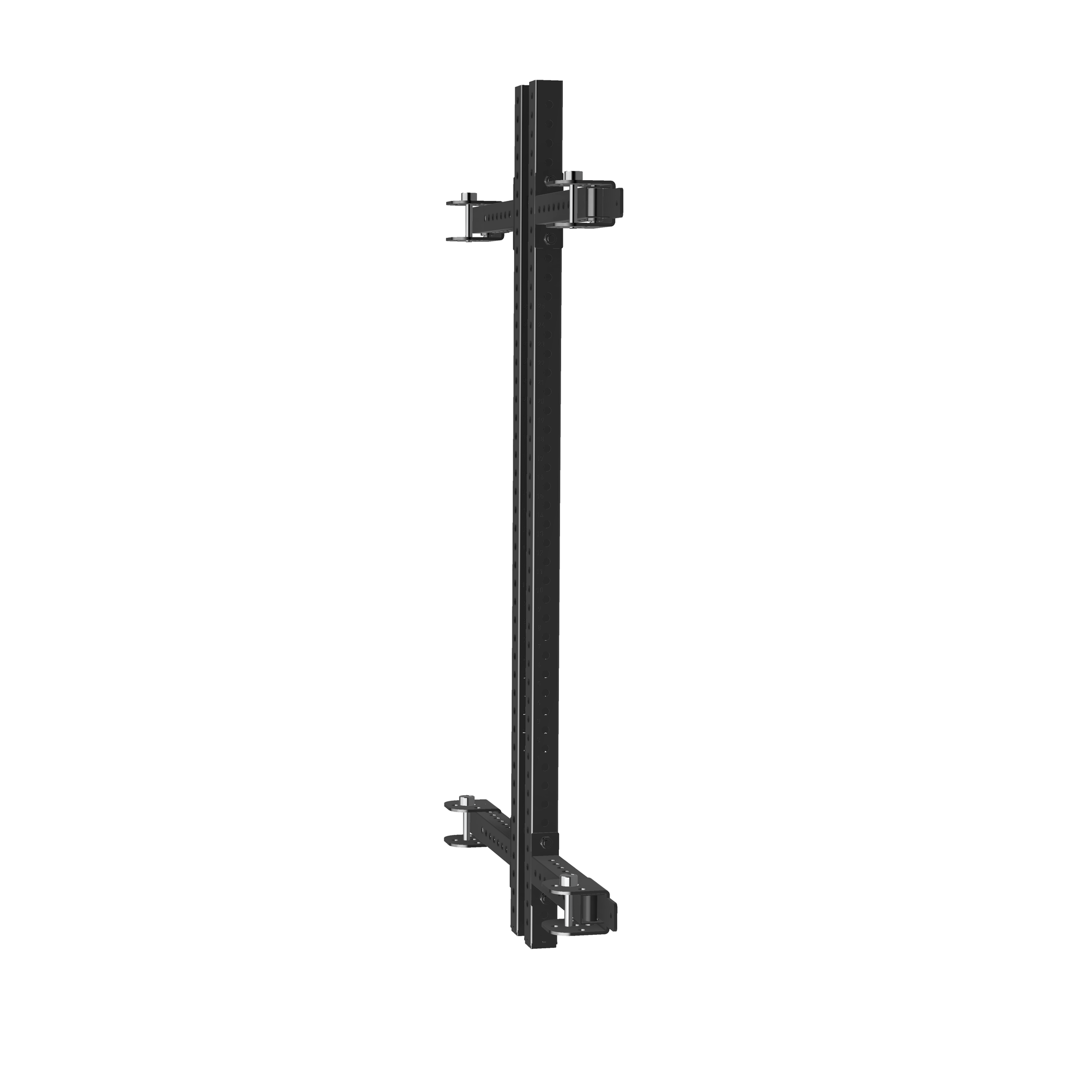

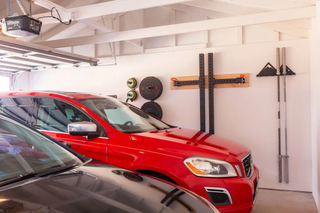

When closed, the Pro Foldable Rack takes up just 10 cm , practically less than the car mirror!

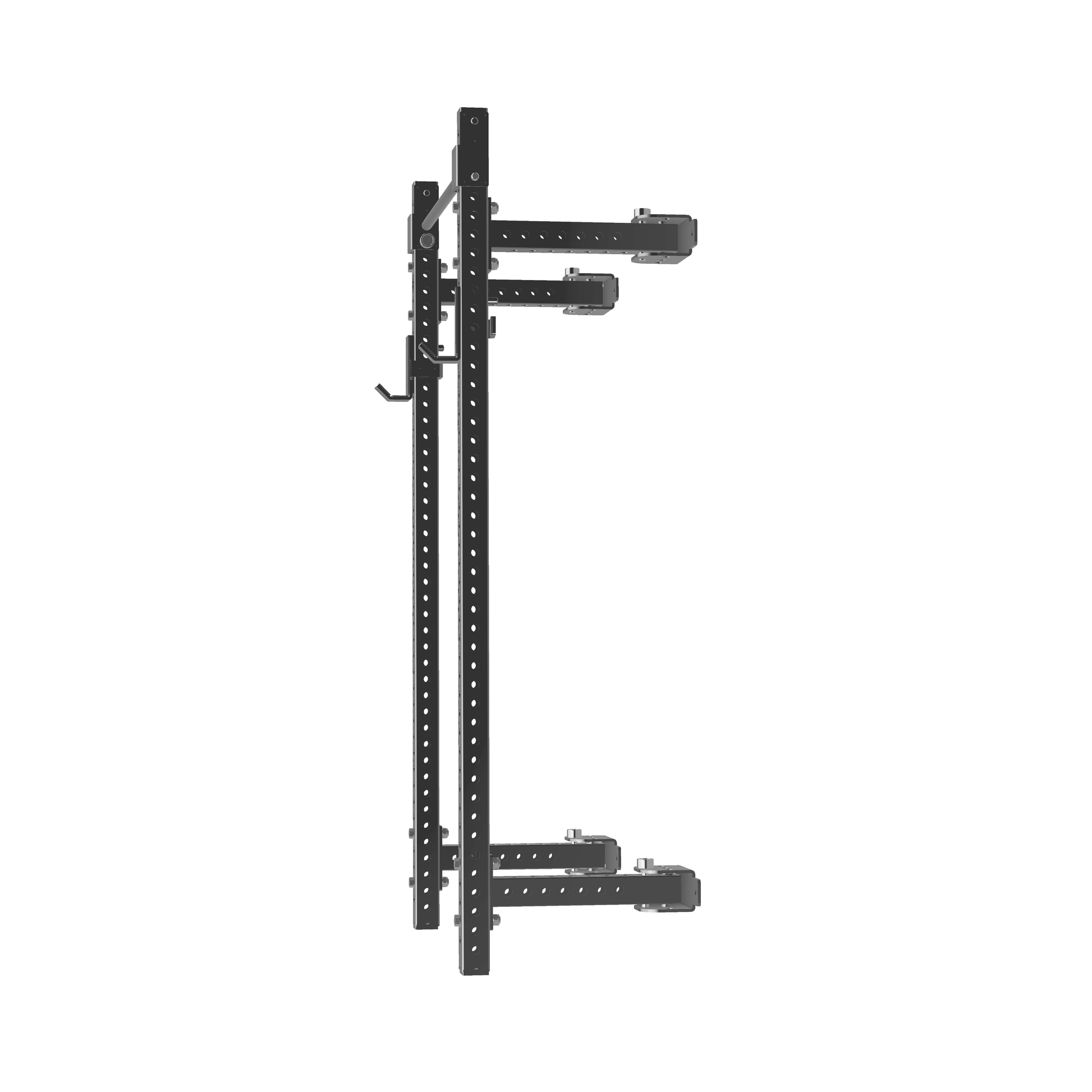

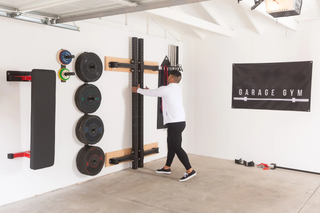

By releasing the two safety catches anchored to the wall, with a simple circular movement Pro Foldable Rack opens, distancing and immobilizing the main poles with the connection bar included in the bundle. Once the workout is finished, you can close everything, performing the reverse movement made to the opening, reappropriating your initial space.

For added safety, the Pro Foldable Rack transfers applied loads to the ground and the movement of each individual pole is independent. Opening and closing are quick and easy , and the sturdy locking pins allow everything to be held in a safe position until the next workout.

Steel frame painted with epoxy powders (fire-painted to ensure excellent durability over time). 75x75mm vertical tubes with 8mm thick connection plates in galvanized steel combined with hot-dip galvanized M12 bolts with self-locking nuts to ensure maximum safety and stability.

Pro Foldable Rack It includes barbell hooks , easily adjustable in height, and the connection bar for performing pull-ups, which, in addition to giving you an extra training option, gives greater stability to the entire structure.

Maybe you didn't know that

Pro Foldable Rack can also be installed in the presence of baseboard.

It also shares many accessories with the Pro Power Rack, this compatibility allows you to move some accessories from one rack to another, a great advantage for saving on the purchase of optional extras.

Information

Brand Ironside Armour
Series Pro
Usage Home/Commercial/Professional
Weight 75 kg
Maximum Load 450 kg

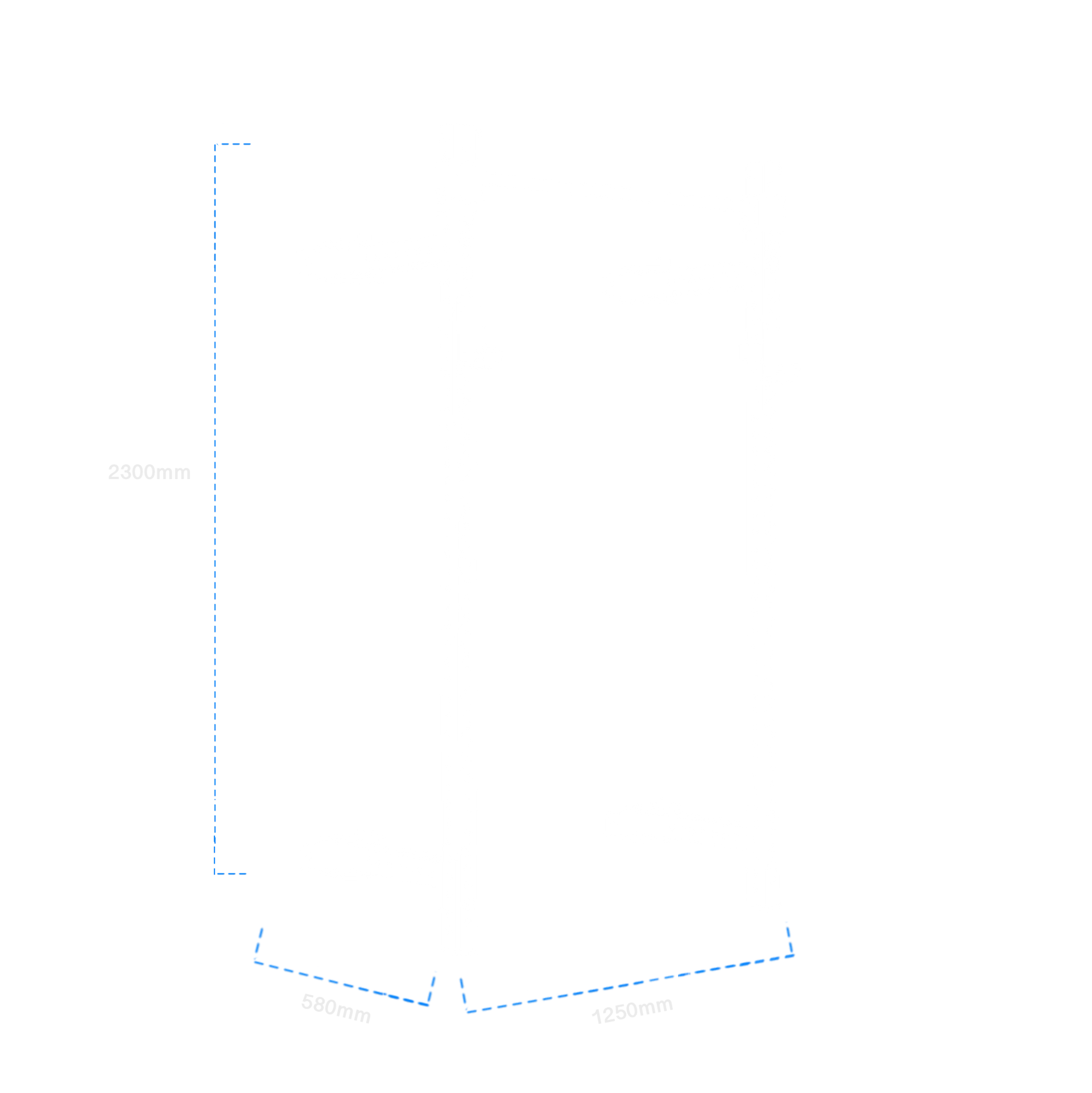

Length
1250 mm
Height
2300 mm
Open Depth
580 mm
Closed Depth
100mm
Material
Steel
Color
Black



{ "extension_type": "bitbybit-viewer", "block_id": "AbmN0d3JmU25US0QyN__3d_bits_bitbybit_viewer_jCFExx", "model_url": "" , "scene_config": { "$schema": "https://ik.imagekit.io/bitbybit/app/assets/start/shopify/viewer-scene-config-schema-0-20-4-2.json", "models": [ { "url": "https://cdn.shopify.com/3d/models/c3a4750de425d5d1/FR_Muro_Pavimento_Gommato.glb", "position": [ 0, 0, 0 ], "rotation": [ 0, 0, 0 ], "scaling": [ 1, 1, 1 ] }, { "url": "https://cdn.shopify.com/3d/models/c36f98bf8ae57426/FR_Foldable_Rack.glb", "position": [ 0, 0, 0 ], "rotation": [ 0, 0, 0 ], "scaling": [ 1, 1, 1 ] }, { "url": "https://cdn.shopify.com/3d/models/e62b23f1dc82c299/FR_Ganci_Standard.glb", "position": [ 0, 0, 0 ], "rotation": [ 0, 0, 0 ], "scaling": [ 1, 1, 1 ], "variantMatch": [ { "name": "ymq[Ganci]", "value": "Ganci Standard" } ] }, { "url": "https://cdn.shopify.com/3d/models/0925b61a35403091/FR_Ganci_Pro.glb", "position": [ 0, 0, 0 ], "rotation": [ 0, 0, 0 ], "scaling": [ 1, 1, 1 ], "variantMatch": [ { "name": "ymq[Ganci]", "value": "Ganci Pro" } ] }, { "url": "https://cdn.shopify.com/3d/models/9a89e903f41b4e51/FR_Storage_Pin_1.glb", "position": [ 0, 0, 0 ], "rotation": [ 0, 0, 0 ], "scaling": [ 1, 1, 1 ], "variantMatch": [ { "name": "ymq[Storage]", "value": "Si" }, { "name": "ymq[Storage Pins]", "value": 1 } ] }, { "url": "https://cdn.shopify.com/3d/models/d3c0151f1cbae2f1/FR_Storage_Pin_2.glb", "position": [ 0, 0, 0 ], "rotation": [ 0, 0, 0 ], "scaling": [ 1, 1, 1 ], "variantMatch": [ { "name": "ymq[Storage]", "value": "Si" }, { "name": "ymq[Storage Pins]", "value": 2 } ] }, { "url": "https://cdn.shopify.com/3d/models/9a89e903f41b4e51/FR_Storage_Pin_1.glb", "position": [ 0, 0, 0 ], "rotation": [ 0, 0, 0 ], "scaling": [ 1, 1, 1 ], "variantMatch": [ { "name": "ymq[Storage]", "value": "Si" }, { "name": "ymq[Storage Pins]", "value": 2 } ] }, { "url": "https://cdn.shopify.com/3d/models/d2612152195b0717/FR_Storage_Pin_3.glb", "position": [ 0, 0, 0 ], "rotation": [ 0, 0, 0 ], "scaling": [ 1, 1, 1 ], "variantMatch": [ { "name": "ymq[Storage]", "value": "Si" }, { "name": "ymq[Storage Pins]", "value": 3 } ] }, { "url": "https://cdn.shopify.com/3d/models/d3c0151f1cbae2f1/FR_Storage_Pin_2.glb", "position": [ 0, 0, 0 ], "rotation": [ 0, 0, 0 ], "scaling": [ 1, 1, 1 ], "variantMatch": [ { "name": "ymq[Storage]", "value": "Si" }, { "name": "ymq[Storage Pins]", "value": 3 } ] }, { "url": "https://cdn.shopify.com/3d/models/9a89e903f41b4e51/FR_Storage_Pin_1.glb", "position": [ 0, 0, 0 ], "rotation": [ 0, 0, 0 ], "scaling": [ 1, 1, 1 ], "variantMatch": [ { "name": "ymq[Storage]", "value": "Si" }, { "name": "ymq[Storage Pins]", "value": 3 } ] }, { "url": "https://cdn.shopify.com/3d/models/717d3c2c9b90df48/FR_Storage_Pin_4.glb", "position": [ 0, 0, 0 ], "rotation": [ 0, 0, 0 ], "scaling": [ 1, 1, 1 ], "variantMatch": [ { "name": "ymq[Storage]", "value": "Si" }, { "name": "ymq[Storage Pins]", "value": 4 } ] }, { "url": "https://cdn.shopify.com/3d/models/d2612152195b0717/FR_Storage_Pin_3.glb", "position": [ 0, 0, 0 ], "rotation": [ 0, 0, 0 ], "scaling": [ 1, 1, 1 ], "variantMatch": [ { "name": "ymq[Storage]", "value": "Si" }, { "name": "ymq[Storage Pins]", "value": 4 } ] }, { "url": "https://cdn.shopify.com/3d/models/d3c0151f1cbae2f1/FR_Storage_Pin_2.glb", "position": [ 0, 0, 0 ], "rotation": [ 0, 0, 0 ], "scaling": [ 1, 1, 1 ], "variantMatch": [ { "name": "ymq[Storage]", "value": "Si" }, { "name": "ymq[Storage Pins]", "value": 4 } ] }, { "url": "https://cdn.shopify.com/3d/models/9a89e903f41b4e51/FR_Storage_Pin_1.glb", "position": [ 0, 0, 0 ], "rotation": [ 0, 0, 0 ], "scaling": [ 1, 1, 1 ], "variantMatch": [ { "name": "ymq[Storage]", "value": "Si" }, { "name": "ymq[Storage Pins]", "value": 4 } ] }, { "url": "https://cdn.shopify.com/3d/models/1202b0109f311143/FR_Rastrelliera_Bilancieri.glb", "position": [ 0, 0, 0 ], "rotation": [ 0, 0, 0 ], "scaling": [ 1, 1, 1 ], "variantMatch": [ { "name": "ymq[Storage]", "value": "Si" }, { "name": "ymq[Accessori storage]", "value": true } ] }, { "url": "https://cdn.shopify.com/3d/models/bff0441794352115/FR_Supporto_Bilancieri.glb", "position": [ 0, 0, 0 ], "rotation": [ 0, 0, 0 ], "scaling": [ 1, 1, 1 ], "variantMatch": [ { "name": "ymq[Storage]", "value": "Si" }, { "name": "ymq[Accessori storage]-1", "value": true } ] }, { "url": "https://cdn.shopify.com/3d/models/81c32e728a120fcf/FR_Dip_Station.glb", "position": [ 0, 0, 0 ], "rotation": [ 0, 0, 0 ], "scaling": [ 1, 1, 1 ], "variantMatch": [ { "name": "ymq[Moduli aggiuntivi]", "value": true } ] }, { "url": "https://cdn.shopify.com/3d/models/4e2255563bb01ceb/FR_Safety_Arms.glb", "position": [ 0, 0, 0 ], "rotation": [ 0, 0, 0 ], "scaling": [ 1, 1, 1 ], "variantMatch": [ { "name": "ymq[Altri accessori]", "value": true } ] }, { "url": "https://cdn.shopify.com/3d/models/27b9edbec1f1afcd/FR_Ganci_Monolift.glb", "position": [ 0, 0, 0 ], "rotation": [ 0, 0, 0 ], "scaling": [ 1, 1, 1 ], "variantMatch": [ { "name": "ymq[Altri accessori]-1", "value": true } ] }, { "url": "https://cdn.shopify.com/3d/models/a023727bea89bd7b/FR_Landmine.glb", "position": [ 0, 0, 0 ], "rotation": [ 0, 0, 0 ], "scaling": [ 1, 1, 1 ], "variantMatch": [ { "name": "ymq[Altri accessori]-2", "value": true } ] }, { "url": "https://cdn.shopify.com/3d/models/8e7bae2252ed601e/FR_Leg_Roller.glb", "position": [ 0, 0, 0 ], "rotation": [ 0, 0, 0 ], "scaling": [ 1, 1, 1 ], "variantMatch": [ { "name": "ymq[Altri accessori]-3", "value": true } ] }, { "url": "https://cdn.shopify.com/3d/models/4457ddb299063193/important-empty.glb", "position": [ 0, 0, 0 ], "rotation": [ 0, 0, 0 ], "scaling": [ 1, 1, 1 ], "variantMatch": [ { "name": "ymq[Storage]", "value": "No" }, { "name": "ymq[Accessori storage]", "value": false }, { "name": "ymq[Accessori storage]-1", "value": false }, { "name": "ymq[Moduli aggiuntivi]", "value": false }, { "name": "ymq[Altri accessori]", "value": false }, { "name": "ymq[Altri accessori]-1", "value": false }, { "name": "ymq[Altri accessori]-2", "value": false }, { "name": "ymq[Altri accessori]-3", "value": false }, { "name": "ymq[Storage]", "value": "No" }, { "name": "ymq[Storage Pins]", "value": "Nessuno" }, { "name": "ymq[Ganci]", "value": "No" } ] } ], "backgroundColor": "#ffffff", "useRightHandedSystem": true, "arcRotateCamera": { "position": [ -2, 1.3, 4.5 ], "target": [ 0, 1.3, 0.5 ], "angularSensibilityX": 1000, "angularSensibilityY": 1000, "lowerRadiusLimit": 1, "upperRadiusLimit": 9, "lowerBetaLimit": 0, "upperBetaLimit": 179, "panningSensibility": 6000, "wheelPrecision": 200, "maxZ": 1000, "minZ": 0, "pinchDeltaPercentage": 0, "pinchPrecision": 300, "useNaturalPinchZoom": false }, "skybox": { "type": "city", "textureSize": 512, "size": 500, "blur": 0.4, "environmentIntensity": 0.6, "hideSkybox": true }, "directionalLights": [ { "direction": [ -100, -100, -100 ], "intensity": 1.3, "diffuse": "#ffffff", "specular": "#ffffff", "shadowGeneratorMapSize": 1024, "enableShadows": true, "shadowDarkness": 0, "shadowUsePercentageCloserFiltering": true, "shadowContactHardeningLightSizeUVRatio": 0.2, "shadowBias": 0.0001, "shadowNormalBias": 0.002, "shadowMaxZ": 1000, "shadowMinZ": 0 }, { "direction": [ 100, -100, -100 ], "intensity": 4, "diffuse": "#ffffff", "specular": "#ffffff", "shadowGeneratorMapSize": 1024, "enableShadows": true, "shadowDarkness": 0, "shadowUsePercentageCloserFiltering": true, "shadowContactHardeningLightSizeUVRatio": 0.2, "shadowBias": 0.0001, "shadowNormalBias": 0.002, "shadowMaxZ": 1000, "shadowMinZ": 0 } ], "loadingSettings": { "overlay": { "color": "#000000" }, "fadeOutTime": 2, "logo": { "url": "https://cdn.shopify.com/s/files/1/0852/3838/2936/files/Icon_White.png?v=1751296200", "width": 200, "height": 212 }, "progressBar": { "showProgressBar": true, "backgroundColor": "#000000", "progressColor": "#ffffff", "height": 50 }, "text": { "showText": true, "title": "Loading", "fontSize": 24 } } }, "camera_position": "" , "camera_target": "" , "background_color": "" , "show_spinner": true , "receive_input_names_as_variants": true , "input_collection_mode": "standard" , "enable_debug_mode": false , "try_to_prepend": true , "prepend_to_element_by_class_name": "media-gallery.product__column-sticky" , "remove_children_before_prepend": true }
View full details

PRO FOLDABLE RACK

MATERIALS

Made of 3MM high-strength steel, it guarantees solidity and durability even during the most intense workouts. Each component is designed to resist wear and tear over time.

LOAD CAPACITY

It supports loads of several tons, making it ideal for advanced athletes and professionals who require maximum reliability during the heaviest exercises.

SAFETY

The heavy frame is designed to offer superior stability thanks to the flat base, eliminating the risk of unwanted movement during training.

ADJUSTMENTS

Equipped with numerous adjustment points for supports and safety bars, it ensures a wide flexibility to adapt to different heights and types of users.

FOLDABLE

Compact and practical, it folds easily on itself to take up minimal space. Perfect for intense workouts in small spaces!

AESTHETICS

With a modern design and finishes that are carefully detailed, it integrates perfectly into any environment, adding style to your gym.

ROBUST PROFILE DESIGNED WITH PASSION

Multimedia collage

Crafted from a solid structure and refined in every detail, this rack is designed to deliver maximum stability and strength during every training session. Laser-cut components ensure precise construction and a flawless assembly. The black powder-coated finish not only gives it a sleek, professional look but also provides excellent protection against corrosion, making it highly durable over time.

Engineered with safety in mind, it features design elements that eliminate unwanted movements and vibrations, allowing you to train with complete focus on your exercises.

UNIQUE FEATURES

Multicolumn

Button label

  • PRO QUALITY

    Strong and reliable, it easily withstands even the most dynamic and demanding exercises. Ideal for intense training sessions, it ensures safety and stability even under heavy loads.

  • STUDIED IN DETAIL

    Efficacia massimizzata grazie ai fori presenti su tutti e quattro i lati dei montanti, che permettono di posizionare gli accessori in modo preciso e versatile, in modo che ogni utente può allenarsi nella configurazione più adatta alle proprie esigenze.

  • INVISIBLE

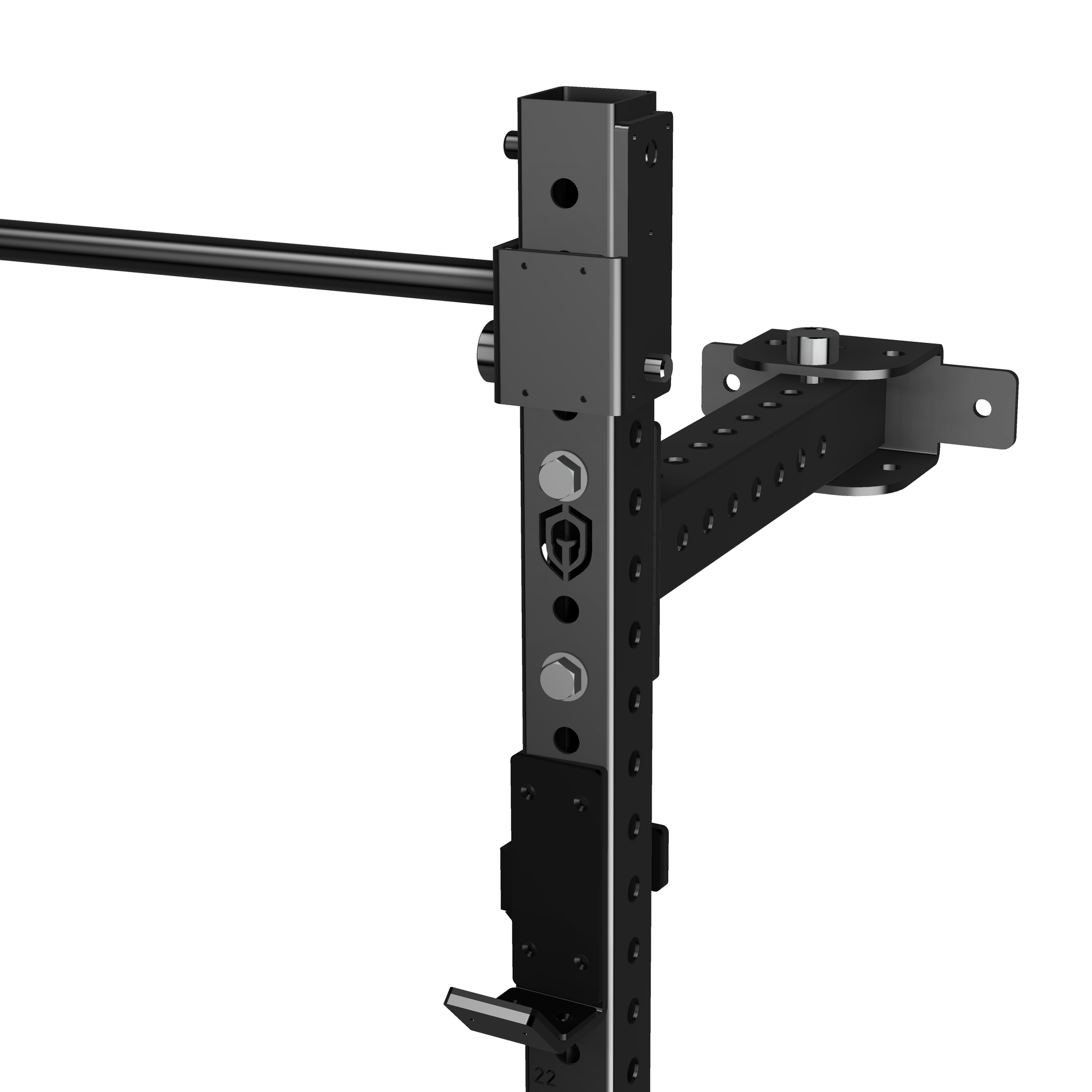

    The upper pins allow you to open and close the rack in a few seconds. Perfect for those looking for practicality, design and strength in the same product, while optimizing the available space.

1 3
Button label

QUALITY RAW MATERIALS

The choice of raw materials is essential to ensure the strength, durability and safety of our Pro Foldable Rack. A product made with high-quality materials not only resists daily wear and tear better, but also offers superior performance and greater reliability over time.

Multicolumn

Button label

  • Column

    All uprights are made from durable 75x75mm steel with a thickness of 3mm, and feature 21mm holes spaced 50mm apart.

  • Column

    All screws and bolts used on our products are high strength zinc plated, made of 1.7cm and 2.5cm steel.

  • Column

    Our rack includes a 32mm diameter pull up bar with 24cm end plates, coated in an ultra-durable black powder coat finish.

  • Column

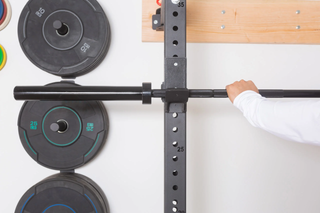

    Also included are two adjustable barbell hooks, so you can rest the barbell at any height you want.

1 4
Button label
HELP WITH THIS RACK?

FAQs

24/7 Support
Hotline: (+86) 1235 1236

Can I install this rack if my garage is not level?

Yes, it is possible to install the rack even if your garage floor is not perfectly level, but a few considerations are important. If the unevenness is minimal, the rack can be stabilized using shims or adjustable feet to compensate for the floor irregularities. However, to ensure maximum safety and stability during use, we always recommend installing it on a flat and solid surface whenever possible. If in doubt, it’s a good idea to consult a technician or consider a simple leveling of the installation area.

Can I install accessories on this rack?

Sure, the Foldable Rack supports many optional accessories. Plus, with the holes on each side of the rack, you can add and adjust accessories as you like.

Can I install Power Arms?

Yes, you can install the Power Arms, but it’s essential that the structure is properly secured to the wall. To ensure safety and stability during use, the rack must be anchored to a solid wall capable of withstanding the forces generated during training. Without proper wall fixation, using the Power Arms could compromise the stability of the structure.

Can I do dynamic exercises like kipping pull-ups and muscle-ups?

Of course. The Foldable Rack is very sturdy and safe, and unlike other cheap racks there is no risk of it tipping over.

What is the main reason to consider the Ironside Armour rack over another brand?

Many accessories are already available and more are in development. A rack's accessory ecosystem is one of the main reasons to choose one brand over another. When you buy an Ironside Armour rack you are investing in the company's ability to create new accessories that will enhance the functionality of your rack over time. Our engineering team is continually working on developing new accessories every year, and we believe this is one of our main points of difference.

What maintenance needs to be done to the rack?

Although this rack is maintenance-free, there are some things that are essential to ensure the safety, longevity, and proper functioning of the equipment.

Inspect the structure : Check the rack for visible damage, such as cracks or deformations in the bars, rungs or support structures. Structural damage could compromise safety.

Cleaning Dust and Dirt : Use a soft cloth or microfiber cloth to remove dust, sweat, or other debris that may accumulate on the surface of the rack.

Lubricate joints and moving mechanisms : If your rack has moving parts, such as pins or adjustable rungs, it is important to lubricate them periodically. Use our lightweight, oil-based multipurpose lubricant to prevent premature wear.

Checking the fixings: especially at the beginning, check that all the screws, bolts and connections are well tightened. A loosening can compromise the safety of the rack and cause damage.

Check the anchoring and base

If the rack is anchored to the floor or wall, check to make sure the anchors are still secure and have not loosened over time. If the rack is freestanding, make sure it does not move or shift during use.

Regular maintenance will help ensure that your gym rack is always in tip-top condition and ready for safe use.
